Subsystems represent the hardware "attachments" and the conceptual systems related to the Spacecraft that are used for maneuvering, sensing, communication, and visualization in FreeFlyer. All can be created in script or from the Spacecraft Object Editor. The following subsystems are available:



Proximity Zones

Sensors

Tanks

Thrusters

Transponders and Receivers





Proximity Zones




Theoretical volume attached to the spacecraft

Can be modeled as a rectangle or spheroid

Used for visualizing the Spacecraft or other points

Used for proximity analysis between Spacecraft and other objects

Proximity Zones are discussed further in the Coverage and Contact Analysis Guide.



Proximity Zone Object Editor with Preview Window

Proximity Zone Object Editor with Preview Window





Sensors




Define the "eyes" of the spacecraft

Can be modeled as anything from a simple cone to custom shape

Used to perform visibility checks of other objects with respect to the sensor's field of view

Used for visualization purposes of other object as well

Sensors are discussed further in the Coverage and Contact Analysis Guide



Cone Sensor with 45-degree half angle

Cone Sensor with 45-degree half angle





Tanks




Hardware component attached to the spacecraft

Represent a mass source that is used in conjunction with thrusters to model maneuvers

Tanks are discussed further in the Maneuvering Guide

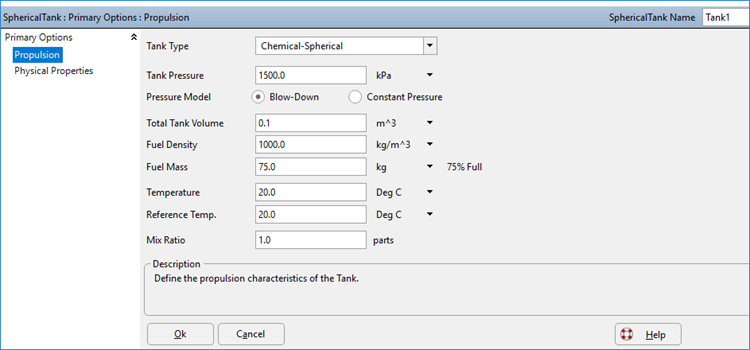

Spherical Tank Object Editor

Spherical Tank Object Editor



Thrusters




Define maneuver direction and force properties

Used in conjunction with tanks to model maneuvers

Thrusters are discussed further in the Maneuvering Guide

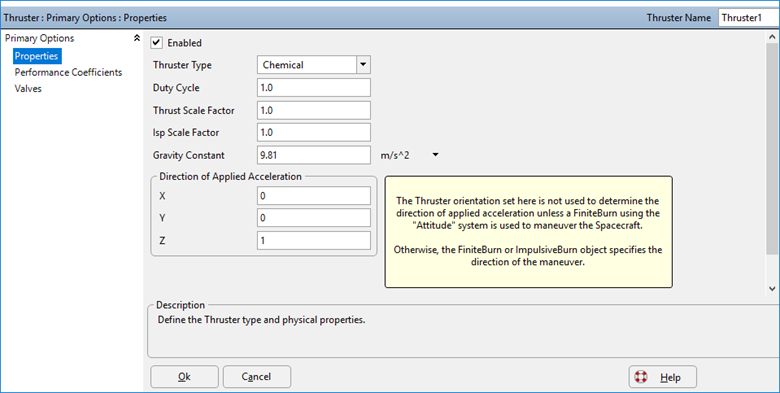

Thruster Object Editor

Thruster Object Editor



Transponders and Receivers




Used to communicate with GroundStations and other Spacecraft

Transponders and Receivers are discussed further in the Orbit Determination Guide

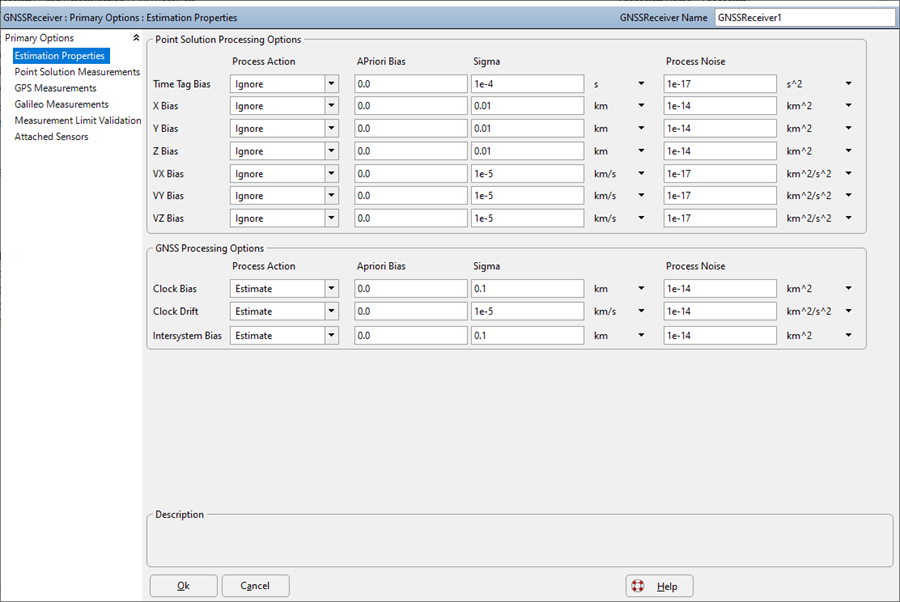

GPS Receiver OD Object Editor

GPS Receiver OD Object Editor

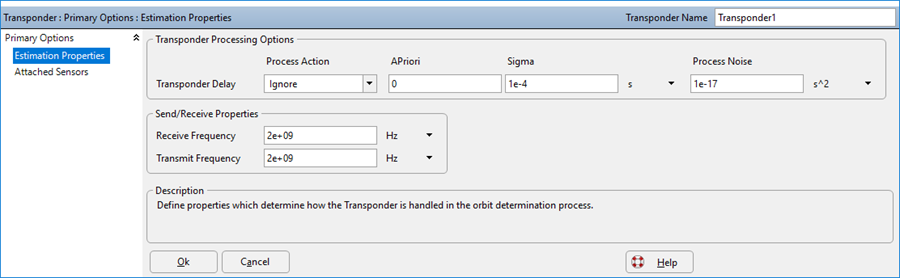

Transponder OD Object Editor

Transponder OD Object Editor
