The 3D view Viewpoint type allows users to configure an output window displaying the desired objects in a three dimensional view focused on the desired object. A View command can be used to generate a 3D view, or a ViewWindow object with a 3D view Viewpoint can be used. The following is a list of the configurable options for a 3D view Viewpoint.


Reference Frame



Tail Reference

Right Ascension



Field of View

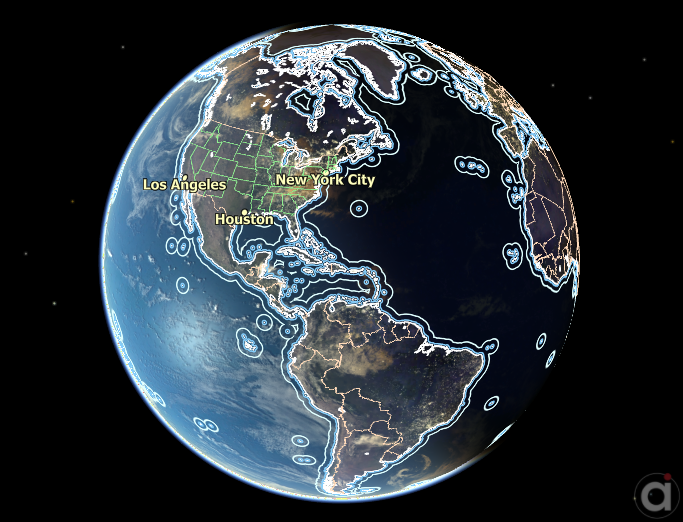

Sample 3D View in FreeFlyer

Sample 3D View in FreeFlyer


To create a 2D or 3D Mission View centered on a central body other than the Earth, including custom Celestial Objects, create a ViewWindow and edit the Viewpoint Source and Target properties. The positions of the built-in CelestialObjects (planets, sun, and moon) are determined by the planetary ephemeris defined in your User Preferences.


The script example below shows how to create a 3D View Viewpoint focused on a Spacecraft with the Earth as the tail reference, and add it to a ViewWindow.


// Create 3D Viewpoint

Viewpoint ThreeDViewpoint;

ThreeDViewpoint.ViewpointType             = "view";

ThreeDViewpoint.ViewpointName             = "Spacecraft View";

ThreeDViewpoint.ThreeDView.ReferenceFrame = "inertial";

ThreeDViewpoint.ThreeDView.Source         = Spacecraft1.ObjectId;

ThreeDViewpoint.ThreeDView.Target         = Spacecraft1.ObjectId;

ThreeDViewpoint.ThreeDView.TailReference  = Earth.ObjectId;

ThreeDViewpoint.ThreeDView.RightAscension = 45;

ThreeDViewpoint.ThreeDView.Declination    = -10;

ThreeDViewpoint.ThreeDView.Radius         = 10000;

ThreeDViewpoint.ThreeDView.FieldOfView    = 45;


// Add Viewpoint to a ViewWindow and activate it

ViewWindow ViewWindow1({Spacecraft1});



Update ViewWindow1;
