Interplanetary Hohmann Transfer

Top  Previous  Next

Hohmann transfers are not just for Earth orbiting spacecraft - they can also be used for interplanetary transfers. Calculating an interplanetary Hohmann transfer is very similar to calculating a Hohmann transfer for an Earth orbiting spacecraft. The only difference we have is that we have one more thing to calculate: The necessary phase angle for the two planets.



In this section, we will cover:



1.Calculating an Interplanetary Hohmann Transfer

2.Modeling an Interplanetary Hohmann Transfer





Calculating an Interplanetary Hohmann Transfer


Calculating the Δv required for an interplanetary Hohmann transfer is exactly like how we did it in the Hohmann Transfer tutorial. Our "parking" orbit SMA is actually our departure planet's SMA about the Sun. Our "target" orbit SMA is the arrival planet's SMA about the Sun.



However, like the Hohmann Transfer tutorial, we must assume that the two planets are both circular and co-planar. Since this definitely isn't the case with any of our solar system's planets in the real world, these calculations only present a conceptual idea of the amount of Δv required for an interplanetary transfer.



One more thing we need to do in addition to the Δv calculations is calculating the necessary phase angle between the planets. The planets need to be at a certain position relative to each other so that when the interplanetary spacecraft reaches the other side of the Hohmann transfer, the arrival planet is there as well. The phase angle 'Φ' is shown here:

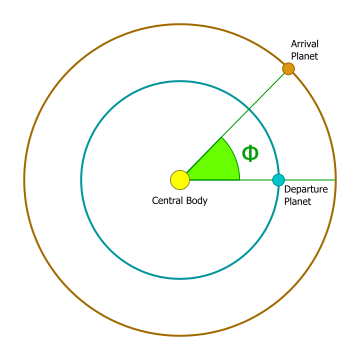

phaseAnglePic

Phase Angle Diagram





You can calculate the phase angle using the following formula:



phaseAngleForm



For this formula, you need the period of the Hohmann transfer, and the angular velocity of the target planet. What we are essentially doing is finding how many degrees the target planet will travel during the time of the Hohmann transfer, which is half of the Hohmann transfer period. To calculate the period of the Hohmann transfer and the angular velocity of the target orbit, we need the following formulas:



tHohAngVel

It is important to note that the formula for the angular velocity is only true when dealing with a circular orbit. Because our interplanetary Hohmann transfer assumes a perfectly circular orbit for both planets, we can use this formula.





Modeling an Interplanetary Hohmann Transfer


When calculating Hohmann transfers, we must first assume that both orbits are circular. In the real world, the orbits of Earth and Mars are not circular. So to model an interplanetary Hohmann transfer, we will be using Spacecraft in heliocentric circular orbits with the same SMA as the planets they are representing. Because basic interplanetary Hohmann transfers only rely on the gravity of the central body, we do not need to model the departure and arrival planets' gravities in our problem.



Problem:

Assume that Earth and Mars are in circular orbits around the Sun at 1 AU and 1.524 AU, respectively. How much Δv is required to perform a Hohmann transfer to Mars? How many days would this transfer take?



Create a new Mission Plan and save it as "InterplanetaryHohmann.MissionPlan"



Adding in Spacecraft



Create a Spacecraft with the following elements:

oCentral Body: "Sun"

oReference Frame: "Mean of J2000 Earth Ecliptic"

oA: 149,597,871 km (This is 1 AU)

oE: 0

oI: 0 deg

oRAAN: 0 deg

oW: 0 deg

oTA: 0 deg

NOTE: Remember that you need to change the Element Type to "Keplerian" to access these elements

Rename the Spacecraft to "InterplanetarySC"

Click on the "Force Model" on the left-hand side

Uncheck the "Earth" and "Moon" boxes

Click on "Propagator" on the left-hand side

Change the step size to 1 day

Click "Ok" to close the editor



Clone "InterplanetarySC"

Rename the clone to "MarsSC" (this Spacecraft will represent Mars)

Change A to 227,987,155 km (This is 1.524 AU)

Click on "Visualization" on the left-hand side

Change the tail color to green

Click "Ok" to close the editor



Adding in the ViewWindow



Create a ViewWindow through the Object Browser

Double click on "ViewWindow1" to open the editor

Check each Spacecraft in the "Available Objects"

Click on "Spacecraft" in the "Available Objects" to select both Spacecraft, then check "Show Name"

Change the history mode to "Unlimited" (for both Spacecraft)



Since we won't be needing to show the real Earth and the real Mars, let's hide them from the ViewWindow.



Click on the "Solar System" section on the left-hand side

Click on "Earth"

Uncheck "Show Object" in "Object Options"

Click on "Mars"

Uncheck "Show Object" in "Object Options"

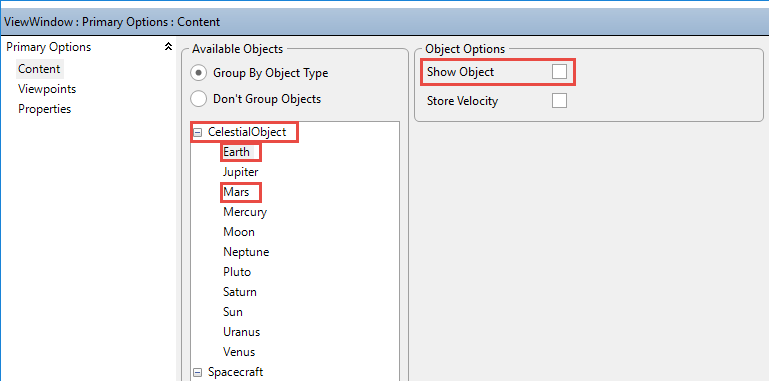

SolarSysOverride

Solar System Properties in the ViewWindow Editor



Now we can continue with the rest of the settings for the ViewWindow.



Click on "Viewpoints" on the left-hand side

Change the reference frame to "Inertial"

Change the Source to "Sun"

Click "Copy to Target/Tail Ref."

In "Source Offsets", change the radius to 500,000,000 km

Click "Ok" to close the editor



Adding an ImpulsiveBurn



Create an ImpulsiveBurn object through the Object Browser

Double-click on "ImpulsiveBurn1" to open the editor

Change the attitude system to "VNB"

Click "Ok" to close the editor



Building the Mission Sequence



To start, we'll propagate the entire solar system for a while so we can see each planet's orbit better.



Drag and drop a while loop into the Mission Sequence

Change the while loop argument to "(InterplanetarySC.ElapsedTime < TIMESPAN(500 days))"

Drag and drop a FreeForm script editor inside that while loop

Open the script editor and rename it to "Step and Update"



In this script, we will step both Spacecraft with an epoch sync, and update the ViewWindow. To do this, we write:



// Steps both spacecraft with an epoch sync

Step InterplanetarySC;

Step MarsSC to (MarsSC.Epoch == InterplanetarySC.Epoch);



// Updates the ViewWindow

Update ViewWindow1;



Let's go back to the Mission Sequence.



Drag and drop a FreeForm script editor after the while loop

Open the script editor and rename it to "Calculate Hohmann Delta V"



In this FreeForm script editor, we will calculate the necessary Δv needed and assign it to the ImpulsiveBurn object we created. To do this, we write:



// SMAs of the departure and arrival planets

Variable startingOrbit = InterplanetarySC.A;

Variable arrivalOrbit = MarsSC.A;



// SMA of the Hohmann transfer

Variable transfSMA = (startingOrbit + arrivalOrbit)/2;



// Velocity of the Hohmann transfer at Periapsis

Variable vTransfPeri = sqrt(Sun.Mu * ((2/startingOrbit) - (1/transfSMA)));



// Delta V for the Hohmann transfer

Variable dV1 = vTransfPeri - InterplanetarySC.VMag;

ImpulsiveBurn1.BurnDirection[0] = dV1;



Next, we need to calculate the phase angle. Let's add another FreeForm script editor to the Mission Sequence.



Drag and drop a FreeForm script editor after the "Calculate Hohmann Delta V" FreeForm

Open the script editor and rename it to "Calculate Phase Angle"



In this script, we need to calculate the necessary phase angle for the Hohmann transfer. To do this, we can use the formulas given in the Calculating an Interplanetary Hohmann Transfer section. We will need to write:



Variable Pi = acos(-1);



// Period of the Hohmann transfer

Variable THoh = 2 * Pi * sqrt(transfSMA^3/Sun.Mu);



// Angular Velocity of the Target Planet

Variable angVelTarget = (360/(2 * Pi)) * sqrt(Sun.Mu/(arrivalOrbit^3));



// Phase Angle

Variable phaseAngle = 180 - (1/2) * (THoh * angVelTarget);



Now that we've calculated the phase angle, we should try and calculate another very helpful thing: the next epoch at which this phase angle occurs. To do this, we will need to calculate two things: the current phase angle, and the phase angular velocity (the rate at which the phase angle changes).

The current phase angle is pretty easy to calculate. If we take the position vectors of each Spacecraft and use the "VertexAngle" method, we can calculate the angle between the two.



// Current Phase Angle

Variable currentPhaseAngle = InterplanetarySC.Position.VertexAngle(MarsSC.Position);



However, this method will not return a value greater than 180 degrees. If Earth is ahead of Mars, we need to add 180 degrees to the phase Angle. To do this, we can take the z component of the cross product of InterplanetarySC.Position and MarsSC.Position, and check to see if it's negative. If it is, that means we need to add 180 degrees. To do this, we write:



// If Earth is in front of Mars, add 180 degrees to the current phase angle

If(InterplanetarySC.Position.CrossProduct(MarsSC.Position)[2] < 0) then;

 currentPhaseAngle += 180;

End;



Now, we need to calculate the phase angular velocity. In this scenario, this will simply be the difference between Earth's angular velocity and Mars's angular velocity. To calculate this, we write:



// Starting Planet Angular Velocity

Variable angVelStarting = (360/(2 * Pi)) * sqrt(Sun.Mu/(startingOrbit^3));



// Phase Angular Velocity

Variable angVelPhase = angVelStarting - angVelTarget;



Now that we have the phase angular velocity, we can calculate how long it will take until we've reached our departure position. To calculate this, we take the difference of our current phase angle, and our departure phase angle. If we divide this difference by the phase angular velocity, we will have the amount of time (in seconds) until we've reached our departure position. Then, we can add that to our current epoch to calculate the departure epoch. To do this, we write:



// Time until Departure

Variable timeTilDep = (currentPhaseAngle - phaseAngle)/angVelPhase;



// Departure Epoch

TimeSpan departureEpoch = InterplanetarySC.Epoch + TimeSpan.FromSeconds(timeTilDep);



We have done all the necessary calculations for our first maneuver. Now, we need to step to the departure date, maneuver, then step to the arrival date. Let's go back to the Mission Sequence.



Drag and drop a FreeForm script editor after the "Calculate Phase Angle" FreeForm

Open the script editor and rename it to "Step to Departure, Maneuver, Step to Arrival"



In this script, we will step to the departure epoch, maneuver the Spacecraft, change the Spacecraft tail color for a better visualization, calculate the arrival epoch, and step to the arrival epoch. To do this, we write:



// Steps to the departure time

While(InterplanetarySC.Epoch < departureEpoch);

 Step InterplanetarySC;

 Step MarsSC;



 Update ViewWindow1;

End;



// Maneuvers the spacecraft for the Hohmann transfer

Maneuver InterplanetarySC using ImpulsiveBurn1;



// Changes the tail color of the spacecraft

InterplanetarySC.Color = ColorTools.Cyan;



// Arrival Epoch

TimeSpan arrivalEpoch = InterplanetarySC.Epoch + TimeSpan.FromSeconds((1/2)*(THoh));



// Step to Arrival

While(InterplanetarySC.Epoch < arrivalEpoch);

 Step InterplanetarySC;

 Step MarsSC;



 Update ViewWindow1;

End;



The last thing we need to do for this transfer is to match our speed with our target. Let's go back to the Mission Sequence.



Drag and drop a FreeForm script editor after the "Step to Departure, Maneuver, Step to Arrival" FreeForm

Open the script editor and rename it to "Orbit Matching Maneuver"



In this script, we will need to calculate speed of Mars's orbit, calculate the Δv required to match the orbit, maneuver the spacecraft, then propagate for 300 days to visualize this change. To do this, we write:



// Velocity of Mars orbit

Variable vMarsOrbit = sqrt(Sun.Mu * ((2/arrivalOrbit) - (1/arrivalOrbit)));



// Delta V required for maneuver

Variable dV2 = vMarsOrbit - InterplanetarySC.VMag;



ImpulsiveBurn1.BurnDirection[0] = dV2;



Maneuver InterplanetarySC using ImpulsiveBurn1;



// Propagates SC for 300 days

While(InterplanetarySC.ElapsedTime < TIMESPAN(300 days));

 Step InterplanetarySC;

 Step MarsSC to (MarsSC.Epoch == InterplanetarySC.Epoch);

 Update ViewWindow1;

End;



One more thing we need to add to the script - the thing we've been looking for all along! We need to report the Δv, and the time of flight in days. For the time of flight, we can simply take the difference of the arrival epoch and the departure epoch as these are measured in days. To report these values, we write:



Report (dV1 + abs(dV2)), (arrivalEpoch - departureEpoch).ToDays();

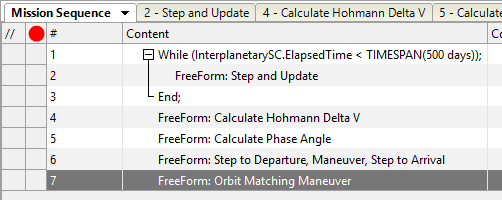

Your Mission Sequence should look something like this:



InterplanetaryHohmannMS

Mission Sequence Example



Save and run your Mission Plan, then try and answer these questions:



How much total Δv was required for the transfer?



How many days did the transfer take?



Try reporting the distance between the two spacecraft at the time where InterplanetarySC "meets" MarsSC (right before the orbit matching maneuver). To do this, you can add the command "Report InterplanetarySC.RadialSeparation(MarsSC)" right before the command to perform the second maneuver. About how far apart were the Spacecraft?
