GroundVehicle Attitude

Top  Previous  Next

The Attitude State defines the Ground Vehicle orientation with respect to a specified coordinate system. Attitude properties can be set via the GroundVehicle Object Editor or FreeFlyer script.







GroundVehicle Attitude State Properties


To define a custom attitude state, the user can specify the Attitude System and Attitude Reference Frame



Attitude System

The GroundVehicle Attitude System specifies the method FreeFlyer uses to orient a ground vehicle with respect to the chosen reference frame



Attitude Reference Frame

The Attitude Reference Frame defines the coordinate system that the Ground Vehicle's attitude is referenced to

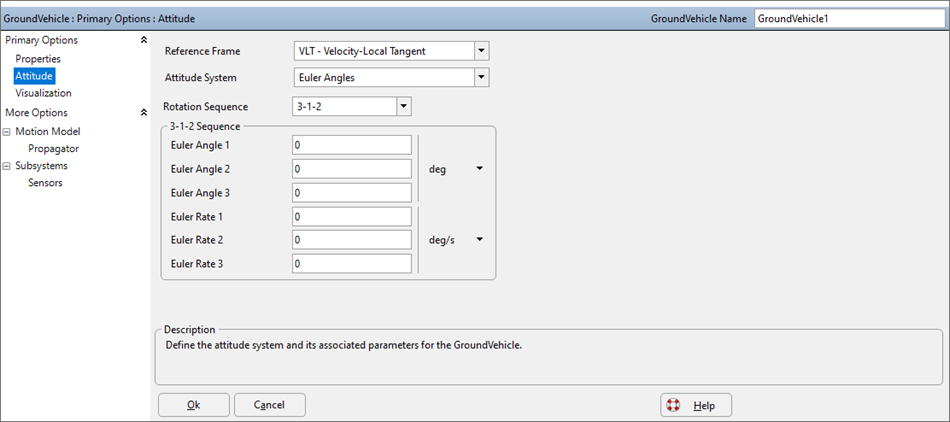

GroundVehicle Attitude Editor

GroundVehicle Attitude Editor
