Subsystems represent the hardware "attachments" and the conceptual systems related to the GroundVehicle that are used for sensing and visualization in FreeFlyer. All can be created in script or from the GroundVehicle Object Editor. The following subsystem(s) are available:
•Sensors |
Sensors
•Define the field of view of the Ground Vehicle •Can be modeled as anything from a simple cone to custom shape •Used to perform visibility checks of other objects with respect to the sensor's field of view •Sensors are discussed further in the Coverage and Contact Analysis Guide |

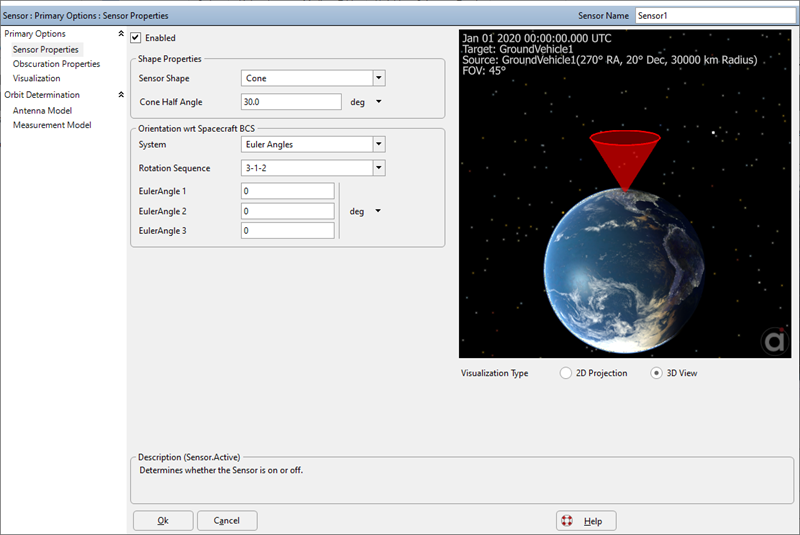

Cone Sensor with 30-degree half angle
