For

 Top  Previous  Next

Description

The For statement contains a block of commands that are executed as a property is increased or decreased until it reaches a terminating condition. The initial and final values of the property are specified, as well as the incremental step value. The For statement always concludes with an End statement. For more information, see the Flow Control Script Reference.





Syntax

For myVariable = 1 to 10; // This assumes an increment of 1 through the loop

      Report myArray[myVariable];

End;



For myVariable = 1 to -10 step -1; // This specifies an increment of -1 to decrease the value through the loop

      Report myVariable;

End;



For myVariable = 1 to 10 step 2;
    Report myArray[myVariable];
End;

For mySpacecraft.A = 7000 to 8000 step myVariable;
    Report mySpacecraft.A;
End;



For myTimeSpan = TS(0 days) to TS(2 days) step TS(60 seconds);

    Report mySpacecraft.A;

End;



For Variable1 = 1 to 10 step 2 with reset;

    Step Spacecraft1;

    Report Spacecraft1.ElapsedTime;

End;





Details

•All commands between For and End are executed for each increment or decrement of the property.

•The "step" keyword is used with the For command to specify the increment size; this can be positive, negative, or omitted entirely for the loop to assume an increment of +1. If the iterator is a TimeSpan value, the assumed increment is +1 day.

•The fourth example shown above will increment mySpacecraft.A by myVariable, beginning at 7000 and ending at 8000.

•To create complex logic flow, you can construct nested loops using multiple For commands, along with If and While statements.

•The Break and Continue statements can be used to control logic flow for exiting For loops.

•In nanosecond timing precision mode, properties and methods with a state are not reset at the start of each iteration of a For loop.

oThe "with reset" keywords can be used to force these properties and methods to reset their state at the start of each iteration of a For loop as shown in the fifth example above.

•In millisecond timing precision mode, properties and methods with a state are automatically reset at the start of each iteration of a For loop.

oThe "without reset" keywords can be used to prevent the state from being reset.

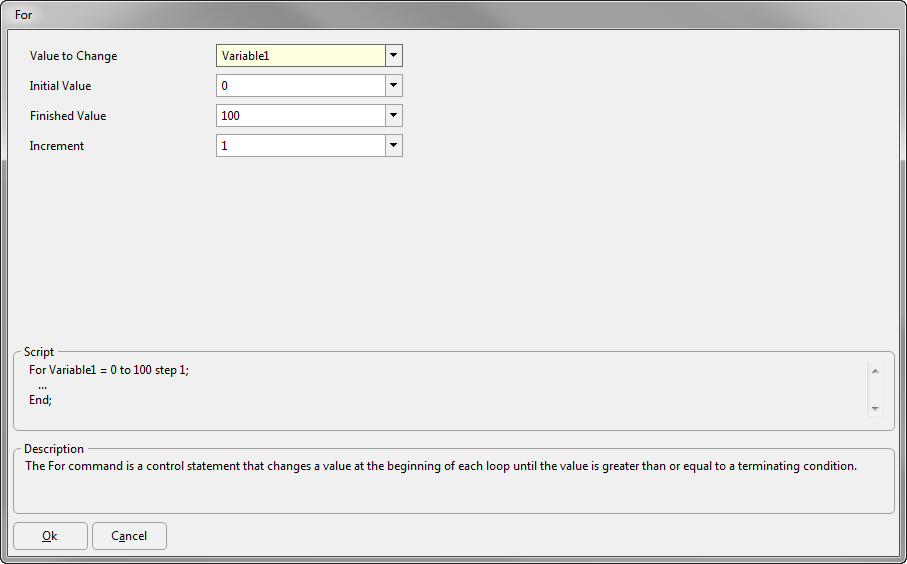

Command Editor

Value to Change

•Defines the item that will be incremented

•This can be an:

oArray element

oVariable

oObject property



Initial Value

•Defines the starting point for the For loop



Finished Value

•Defines the termination point for the For loop



Increment

•Defines the step increment for the For loop



Script

•Displays the FreeFlyer Script that is generated by the editor

•The ellipsis (...) indicates that additional script can be added inside the loop



Description

•Displays descriptions of the editor and its fields

•Description text changes as the mouse pointer moves over the different fields within the editor







See Also

•If

•While

•Continue

•Break

•Flow Control Script Reference

•Properties and Methods with a State
