UniformNoise(Variable, Variable) Function

 Top

Description

Returns a random number with the specified mean and width.



Note that this function shares its seed value with FreeFlyer's internal random number generation. This means that even with a set seed value it is possible for this function to generate inconsistent values across Mission Plan executions based on the sequence of events undergone in the Mission Plan.



Timing Precision Mode

This page describes functionality in nanosecond timing precision mode.



Function Signature

UniformNoise(

Variable mean,

Variable width)





Arguments

mean

Description:

The mean of the distribution.





width

Description:

The 3-sigma width of the distribution.

Valid Range:

width > 0







Return Value

Type:

number





A random number with the specified mean and width.



Syntax

myVariable1 = UniformNoise(myVariable2, myVariable3);





Example 1

This example creates a plot showing uniform noise with a mean of 0 and width of 1.



Variable i;

PlotWindow PW1({UniformNoise(0, 1), UniformNoise(0, 1)}, 0);



// Show points

PW1.LineType = 1;

PW1.MaxPoints = 100000;



For i = 0 to 10000 step 1;



 Update PW1;



End;

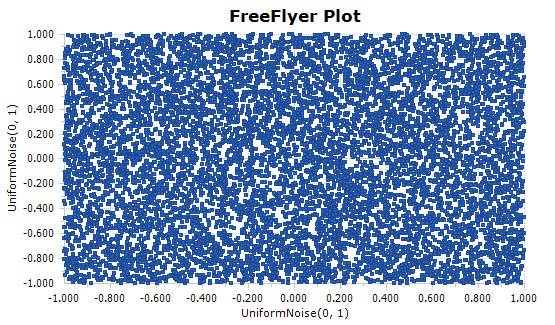

Output:







See also

UniformNoise
