Answers

Top  Previous



Getting Started Guide




Starting Your First Mission



Running the Mission



1.Spacecraft2

2.Spacecraft1

3.0.5 Days



Using Impulsive Burns



1.Spacecraft1 has a higher velocity right after the burn

2.Spacecraft1's variance in velocity increased







Orbital Elements Tutorial




Orbit Shapes and Sizes



Semi-Major Axis



1.Spacecraft1

2.Spacecraft3

3.Spacecraft3's period is approximately 24 hours



Eccentricity



1.Spacecraft3 and Spacecraft3

2.The peak in velocity occurred at the periapsis of the orbit

3.All of the Spacecrafts' periods are the same

4.The higher the eccentricity, the more variance in velocity



Orbit Orientation



Inclination



1.Spacecraft3

2.Spacecraft1

3.The Spacecraft travels in a retrograde orbit



Right Ascension of the Ascending Node (RAAN)



1.12 times

2.15 times



Argument of Perigee



1.Spacecraft4

2.The inclination needs to be 90 degrees, and the argument of perigee needs to be 270 degrees



True Anomaly



1.Approximately 100 minutes

2.Approximately 25 minutes





Spacecraft Attitude




Attitude State Representations



Euler Angles



1.Roll is a rotation about the spacecraft body X-axis, Pitch is a rotation about the spacecraft body Y-axis, Yaw is a rotation about the spacecraft body Z-axis

2.scYaw now has the same attitude motion as scRoll



Modeling the Direction Cosine Matrix and Quaternions



1.If hand calculations were correct, scEuler, scDCM, and scQuaternion were all set to the same attitude using different methods. Therefore, they should appear as one spacecraft

2.Rounding at 5 significant figures, answers should be well within 1% of actual values

3.At any given time, the components of the quaternion satisfy the constraint equation, and q4 never becomes a negative value



Attitude Reference Frames



LVLH vs Other Reference Frames



1.LVLH

2.MJ2000



3.At apogee and perigee

4.At any time the Flight Path Angle and the Euler Angle together equal 180 degrees, showing that the change in Pitch is equivalent to the Flight Path Angle

5.X-axes are always parallel, this is because the velocity vector on a circle is always tangent to the circle at any given time, making it the same vector as the Local Horizontal



Mission Constraints on Spacecraft Attitude



Custom Mission Attitude Frame



1.Minimum is approximately 1045W - Maximum is approximately 3495W - Yes this meets the requirements

2.scToSun defines the rotation about the primary scToCanberra Vector

3.No, our sensor points toward space and we do not receive enough power



Maneuvering Tutorial




Hohmann Transfer



Hohmann Transfer - Earth Centered



3.Answers should be within 1 m/s accuracy

4.Decrease



Bi-Elliptic Transfer



Modeling the Bi-Elliptic Transfer



4.Answers should be within 1 m/s accuracy

5.Δv1 = 2.952 km/s, Δv2 = 0.775 km/s, Δv3 = -0.301 km/s, ΣΔv = 4.029 km/s

6.The Hohmann transfer used 0.017 km/s more

7.Decrease



Phasing Maneuver



Modeling a Phasing Maneuver

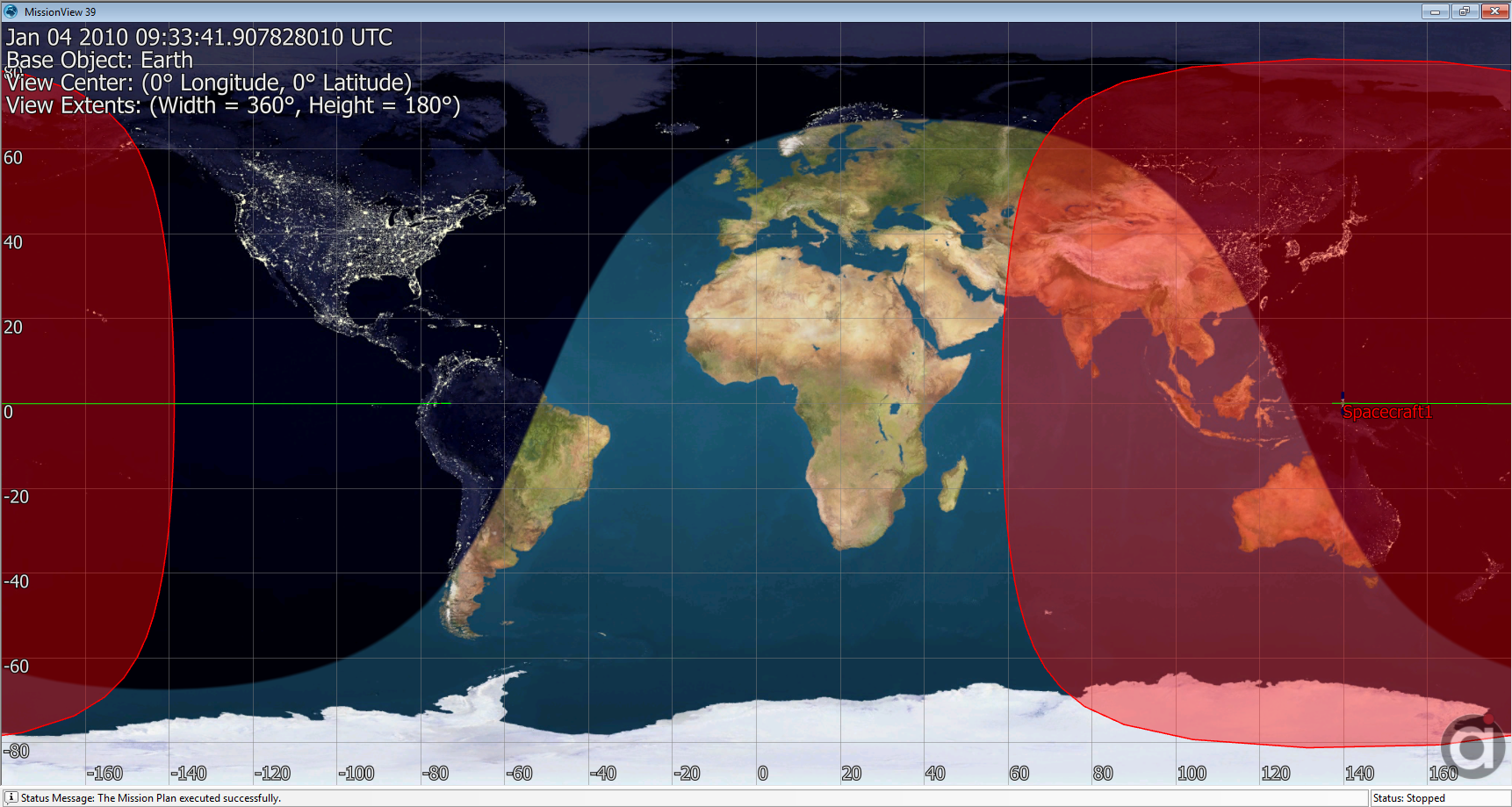

1.Final output should look like this:



phasingOutput

Phasing Orbit



2.It used a total of 0.246 km/s less



Plane Change Maneuver



Modeling Plane Change Maneuvers



1.Answers should be within 1 m/s accuracy

2.Plane change maneuvers require less Δv for slower spacecraft

3.At the apoapsis of the intermediate transfer orbit



Interplanetary Topics




Interplanetary Hohmann Transfer



Modeling an Interplanetary Hohmann Transfer



1.5.596 km/s

2.259.32 days

3.Approximately 14.24 km



Patched Conics Transfer



Modeling a Patched Conics Transfer



1.Δv1 = 3.485 km/s, Δv2 = -2.254 km/s

2.ΣΔv = 5.739 km/s

3.280869.54 km



Gravity Assist



Modeling a Gravity Assist



1.BackSideSC

2.The Spacecraft exited in the same general direction as the Mars velocity vector

3.The magnitudes are within 0.040 km/s of each other. Their orbits are so drastically different because they had different exit directions in reference to the planet's velocity.



The B-Plane



Modeling the B-Plane



1.<9142.492, -4264.283, -3147.362> km

2.4.725 degrees

3.Answer should be within 1 meter



Targeting Tutorial




Inclination Change



Use Targeting to Model an Inclination Change



1.Calculations by hand should match with FreeFlyer's calculations. You can solve for the initial velocity using the circular velocity formula. Solutions:

Δvnv: 1.1417 km/s - notice that FreeFlyer represents this as negative, because it is opposite the velocity direction

Δvn: 3.6213 km/s

Total Δv: 3.797 km/s

2.Achieving goals for SMA and eccentricity instead of circular velocity should yield the same results.

3.Coming from a non-equatorial orbit would require the burn to be performed at either the ascending or descending node. We would need to step our spacecraft to one of these positions in its orbit before executing the targeting loop in order to achieve a proper inclination change.

4.The Targeting loop in FreeForm script should look like this:



Target;



 Iterate Spacecraft1;



 // Elements we can vary to achieve the desired inclination

 Vary ImpulsiveBurn1.BurnDirection[0] = 0 + 0.001;

 Vary ImpulsiveBurn1.BurnDirection[1] = 1 + 0.001;



 // Perform the maneuver

 Maneuver Spacecraft1 using ImpulsiveBurn1;



 // Goals to achieve with the maneuver

 Achieve Spacecraft1.I = 35 +/- 0.01;

 Achieve Spacecraft1.VMag = initialVelocity +/- 0.001;



End;



B-Plane Targeting



Targeting Mars's B-Plane



1.Angle between B and T: 114.923 degrees. B magnitude: 8004.149 km. Both are within their respective tolerances.

2.We only burn in the V direction because our B-plane targeting means we are already in the correct plane to achieve a polar orbit. We just need to slow down so that we do not fly by Mars. If we allow the other two burn directions to vary, their magnitudes are negligible.



Real World Modeling




Multi-Body Effects



Modeling Two Body, Three Body, and a Multi-Body Problem



1.TwoBodySC

2.ThreeBodySC crashed into the Earth. The Sun perturbed its orbit resulting in a trajectory impacting the Earth.

3.The shape of the orbit is a "figure 8"

4.MultiBodySC; It shows that sometimes there are forces that cannot be factored in easily without assistance from computers.



J2 Perturbation



Modeling a Sun-Synchronous Orbit



1.Approximately 365 days

2.No because the force model does not factor in the effects of the oblate Earth



Atmospheric Modeling



Observing Atmospheric Perturbation



1.The ISS

2.Approximately 508 days



Solar Radiation Pressure



Observing SRP Perturbation



1.Approximately 215 km

2.Approximately 0.000 km
